Module product

Wi-Fi HaLow™ Product

IEEE802.11ah

Overview of Wi-Fi HaLow™

Wi-Fi HaLow™ is one of the low-power wide-area (LPWA) communication methods using 920 MHz band.
We offer cutting-edge products that contribute to the world through collaboration with Morse Micro who develops Wi-Fi HaLow™ solutions.

Please visit Morse Micro's website for Wi-Fi HaLow™ products.

Features of Wi-Fi HaLow™

  1. Long-range transmission
    The communication range is beyond 1 km, well beyond the reach of conventional Wi-Fi protocols.
    This enables us to build a home network even outdoors such as in parking lots.

  2. Wide bandwidth
    The transmission bandwidth is up to several Mbps, which is limited to about 100 kbps in traditional LPWA communications.
    Video and image transferring is also possible in the system, which previously only supported the transfer of sensor data.

  3. IP communication
    Like traditional Wi-Fi, IP communication using TCP/IP is possible, allowing for a seamless connection to conventional Wi-Fi.
    It also supports the WPA3 security protocol.

Comparison Table

Wi-Fi HaLow™ achieves maximum transmission bandwidth among traditional LPWA communication methods.
It is also equipped with total specs of outstanding performance among license-free communications that are free to install.

Criteria Wi-Fi HaLow™ LoRa WAN Wi-SUN SigFox NB-IoT
Frequency band Sub-1GHz Sub-1GHz Sub-1GHz Sub-1GHz Sub-1GHz
Transmission band ~Several Mbps ~50kbps ~300kbps ~600bps ~62kbps
Communication range ~1.0km ~10km ~1.0km ~40km ~10km
Connection type Star/Tree Star Star/Mesh Star Star
Form of use Free installation Free installation Free installation Supplied by carrier Supplied by carrier

External Appearance of Module

Wi-Fi HaLow™
RF Module

Single module with Wi-Fi HaLow™ transceiver function.
This is usable on the customer's system board.

RF Module

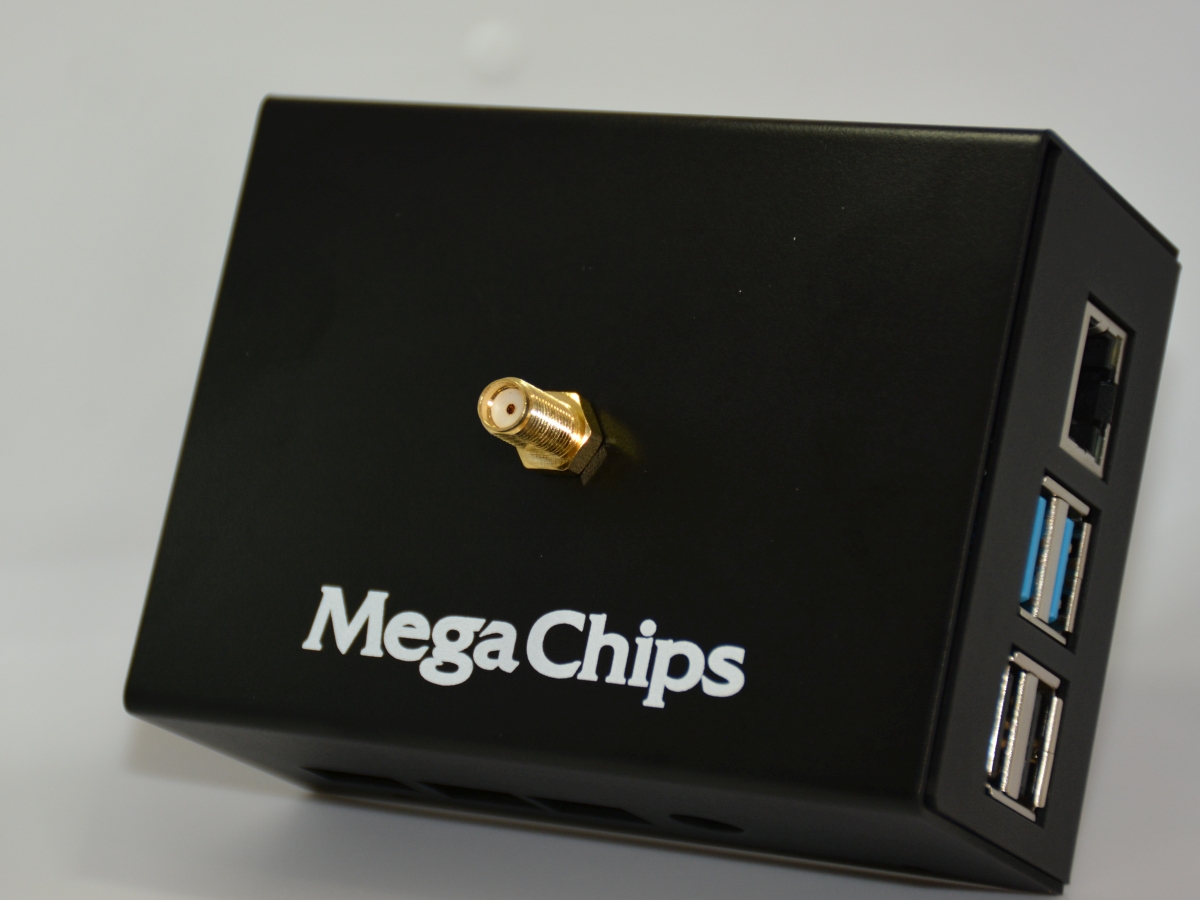

Evaluation Kit

The system module with the Wi-Fi HaLow™ communication function on Raspberry Pi®.
The access point or end point is usable.

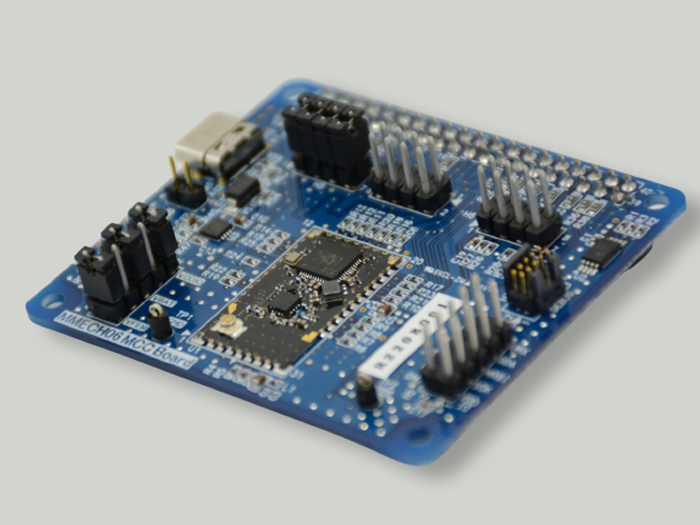

RF Module
Extension Board

The extension module board connected to Raspberry Pi® and other control boards.
Wi-Fi HaLow™ communication is usable immediately with a dedicated and available API.

*The company names and products on this page are registered trademarks of each company.
